Power-86
The Power-86 Power Supply Board is a companion board for the state of the art Neurochrome composite amplifiers. The intended use is for one Power-86 board to power two Modulus-86, Modulus-286, or LM3886DR in a stereo amp. It is also possible to use one Power-86 board to power a mono block or, with a slight reduction in peak output power, more than two Modulus-86 or LM3886DR boards.
Technical Documentation
- Features
-
The Power-86 board features:
- Optimized PCB layout.
- Minimized output impedance and ground impedance through the elaborate use of planes and pours.
- On-board, heat sinked bridge rectifier.
- Supports two electrolytic capacitors of up to 40 mm in specified diameter (max. diameter: 41.5 mm).
- Connector for power ON indicator LED.
- Simple capacitor snubber to eliminate coupling of diode switching noise into sensitive circuits.
- Two industry standard JST 3-pin output connectors compatible with the Modulus-186 and Modulus-286.
- Terminal blocks capable of handling up to AWG 10 (5.2 mm2) wire sizes.
- Detailed documentation describing how to identify the various windings on an Antek AN/AS-series power transformer and connect the transformer correctly.
- Bill-of-materials available as a link to a project set up with Mouser Electronics for ease of parts ordering.
- The circuit board is fully electrically tested by the manufacturer.
- Gold plated circuit board. Made in Canada.
- 3.3Â Ă 3.6 inch (84Â Ă 92 mm) footprint.

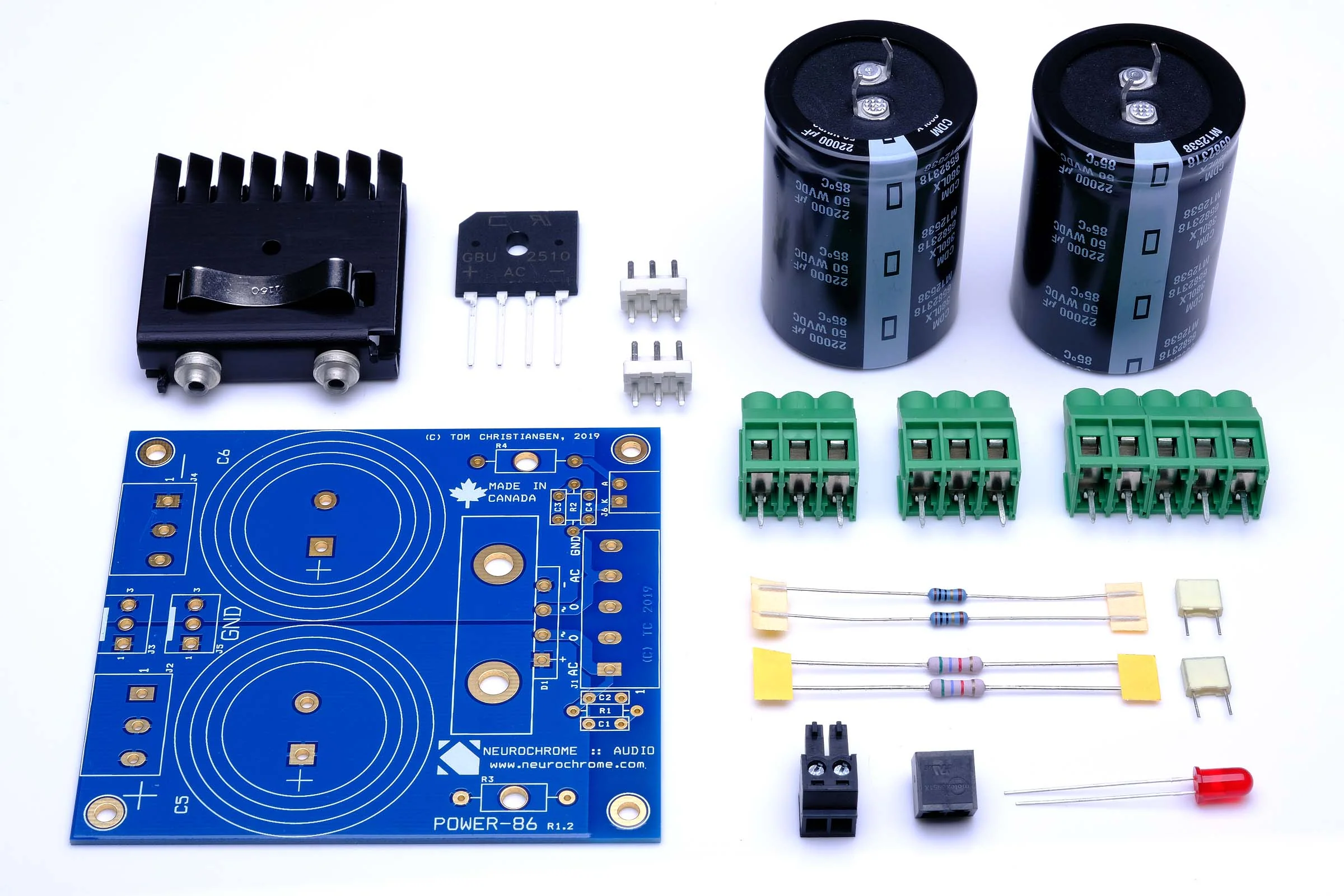

Build budget: The cost of the parts is just shy of $50. The Kit contains all parts needed to populate the circuit board. In addition to the parts you will need a dab of thermal grease such as Arctic Silver commonly available at computer parts stores.
