RCA Connectors

Unlike other PCB mounted RCA connectors, these high-end connectors use round pins. This greatly simplifies the PCB layout and results in a much better connection to the circuit board.

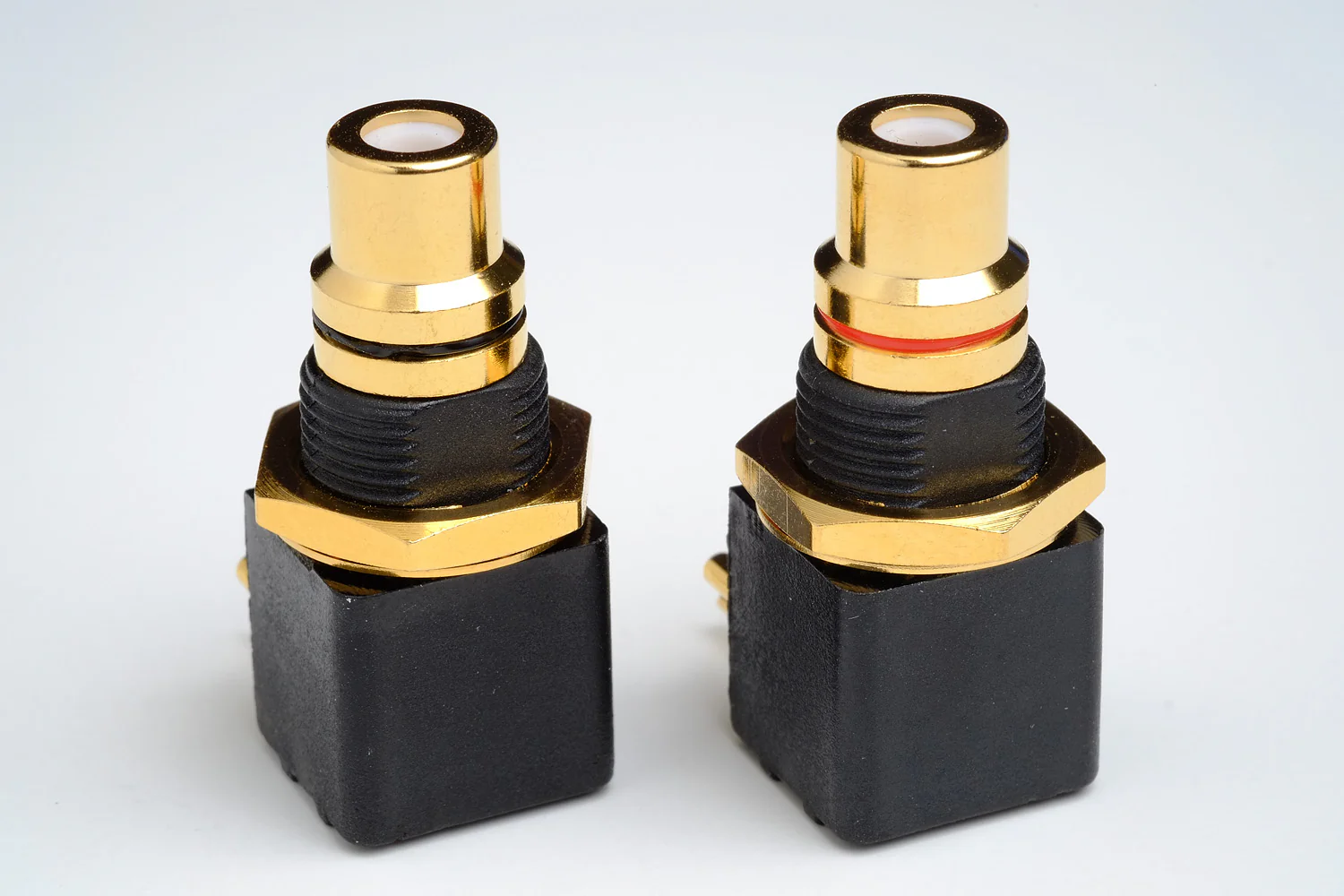

These connectors are sold in pairs. You will receive one red and one black marked connector.

• Materials

• • Body and contacts: Gold plated brass.
  • Centre insulator: Teflon.
  • Washer: Gold plated steel.
  • Nut: Gold plated brass.

  Max. supported panel thickness: 4.0 mm.

  These connectors are RoHS compliant. Made in Taiwan.
